Workshop Guide
Prerequisites
Laptop (4GB RAM minimum, 8GB RAM recommended)
VirtualBox 7.2.2
Mobile Data (recommended)
11GB OVA file: Download here
Please make sure that your laptop is fully charged
Workshop Datasets: Download here
Laptop (4GB RAM minimum, 8GB RAM recommended)
Mobile Data (recommended)
VirtualBox 7.2.2
11GB OVA file: Download here
Workshop Datasets: Download here
Please make sure that your laptop is fully charged
Video Tutorial:
Steps
Importing the SOSCON PH VM
1
Using Virtual Box, click Networks Tab on Left Navigation Bar
2

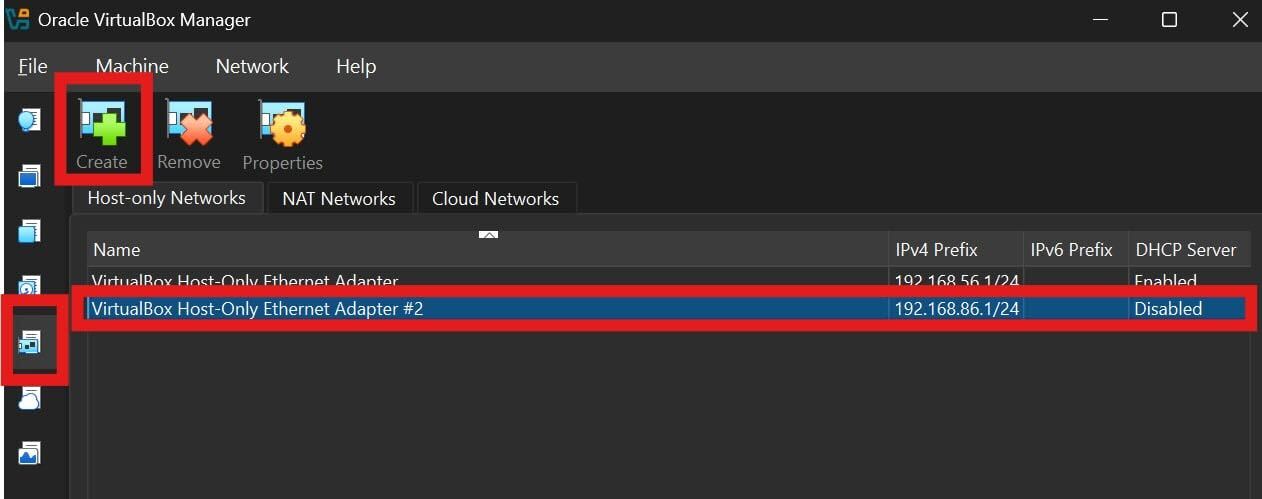

Go to Host-only networks sub-tab
3
Create another host-only ethernet adapter (VirtualBox Host-Only Ethernet Adapter #2)
4
Click on created ethernet adapter
5

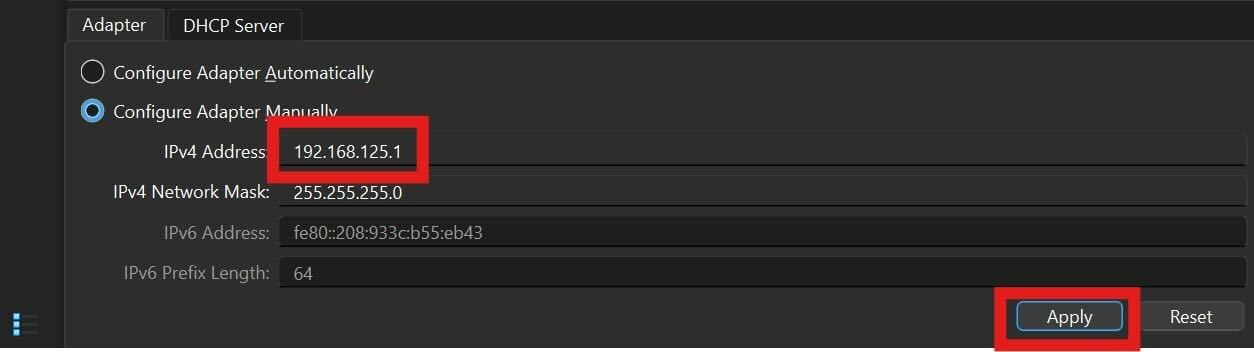

Configure Adapter and click Apply***
(configure adapter manually is selected) (IPv4 address is 192.168.125.1) (subnet mask is 255.255.255.0)
6

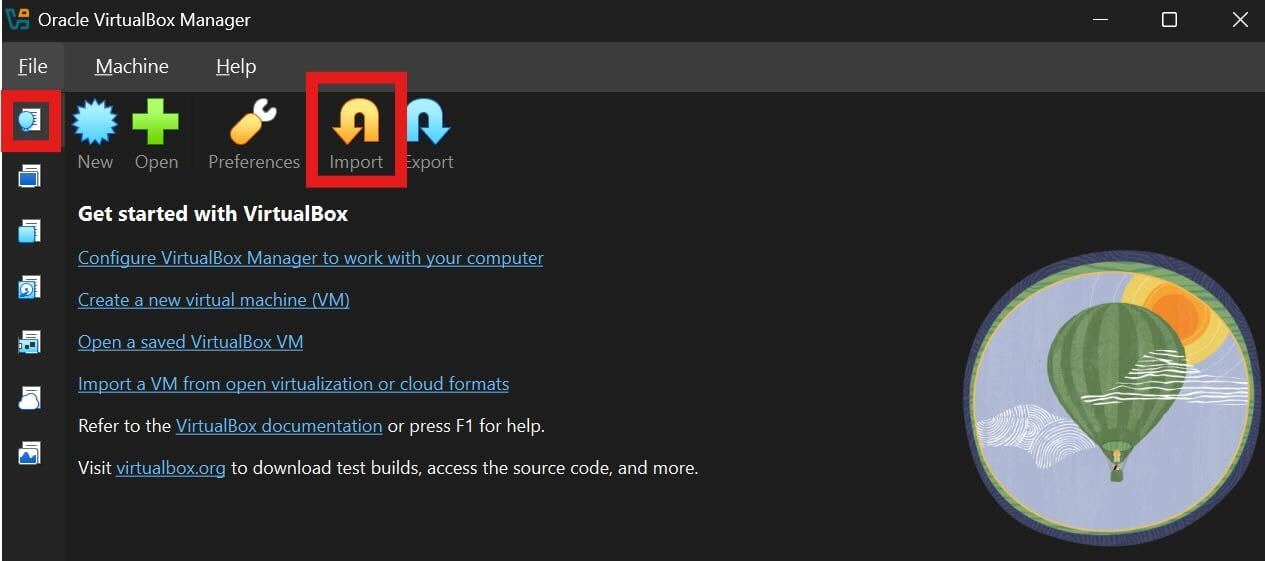

Click Home Tab on Left Navigation Bar
7
Click Import
8

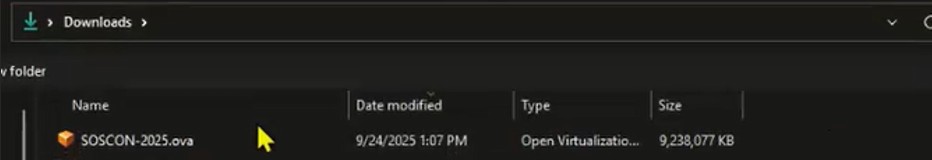

Search and select OVA file
9
Click Settings
10

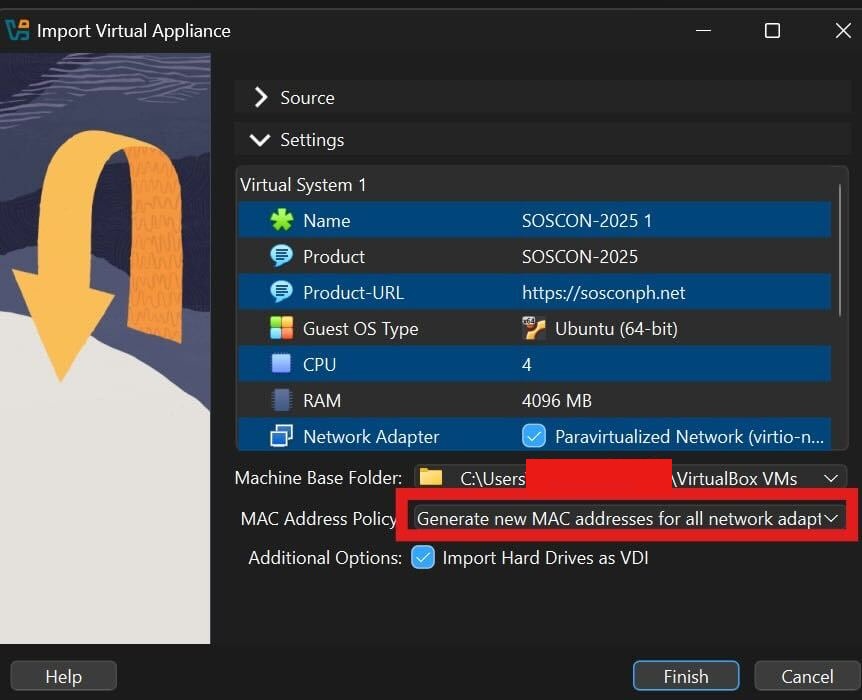

Click MAC Address Policy and select Generate new MAC addresses for all network adapters
11
Click Finish
12
Click Agree on Licenses for Open Source dialog
13
Wait for import to finish
USING SOSCON PH VM
A1
(Optional) Right click on SOSCON PH VM and click settings
A2
(Optional) Click System and increase amount of RAM allocated to VM
1

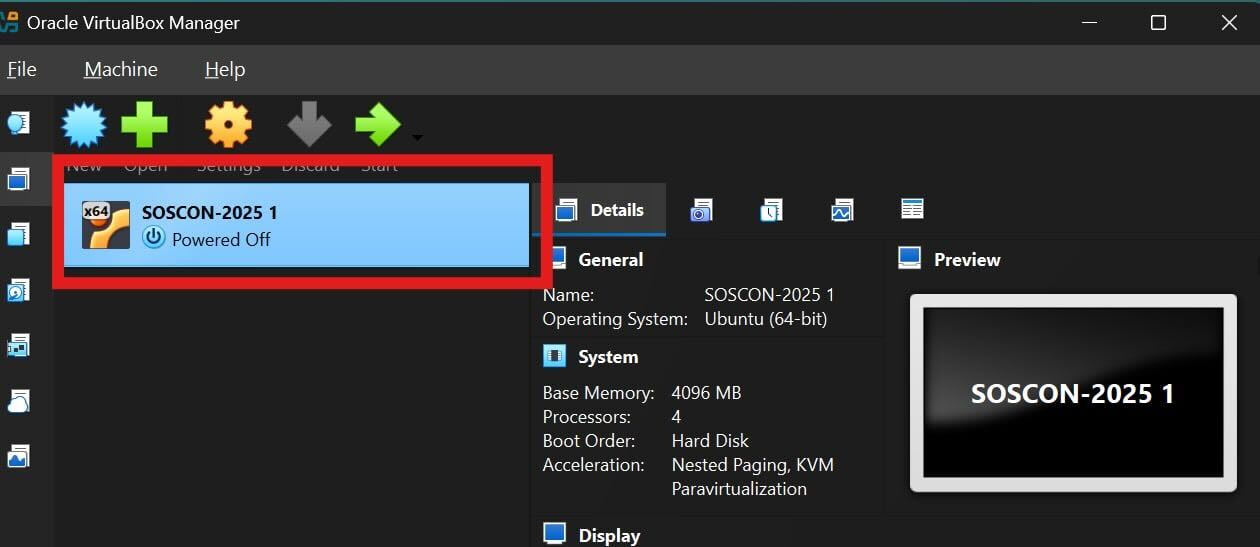

Right click on SOSCON PH VM
2

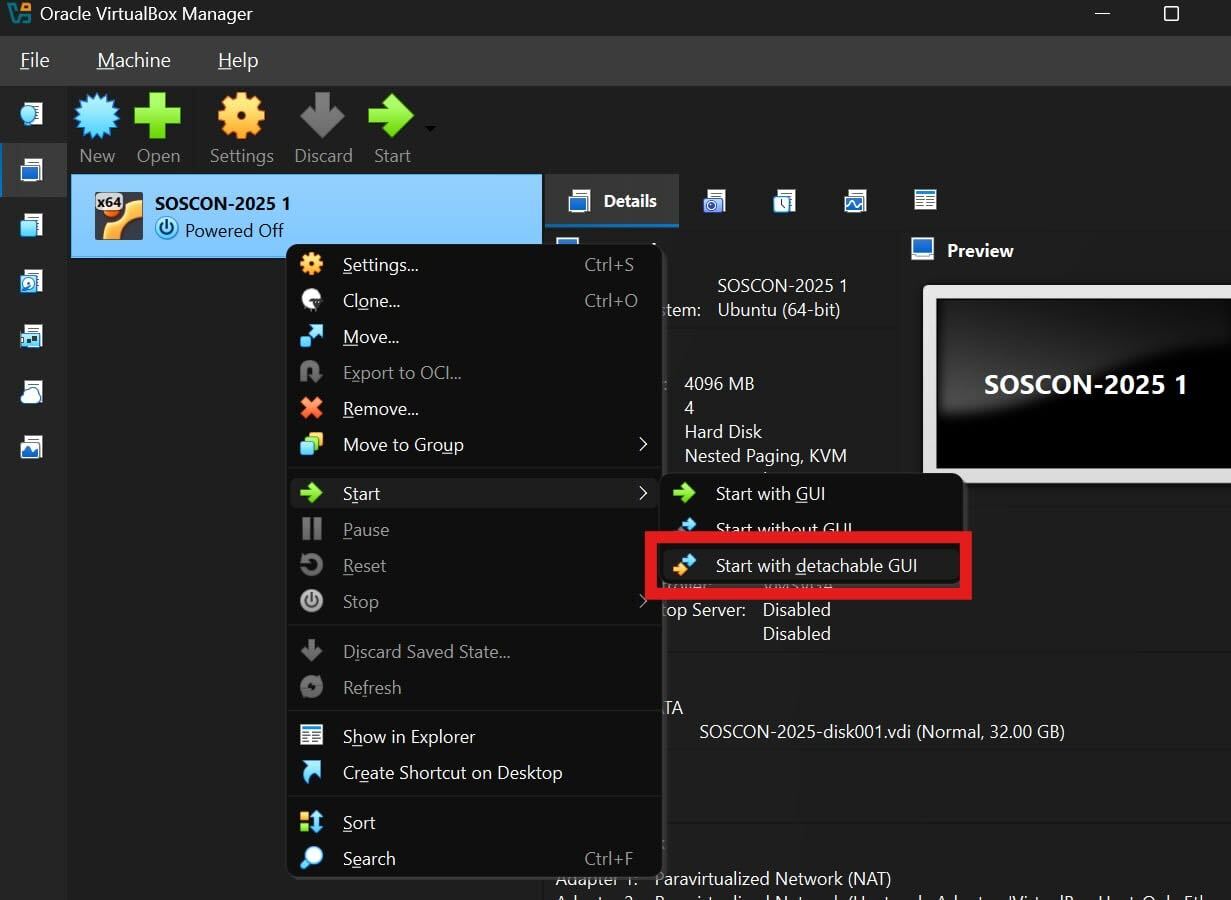

Click Start > Start with detachable GUI
3

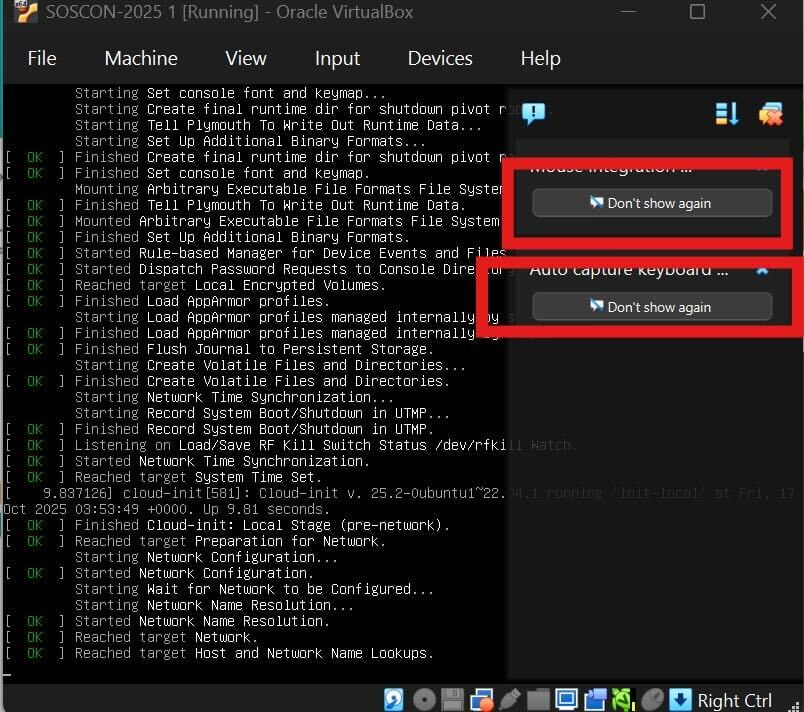

Wait for VM to boot up. (Ignore the warnings.)
4

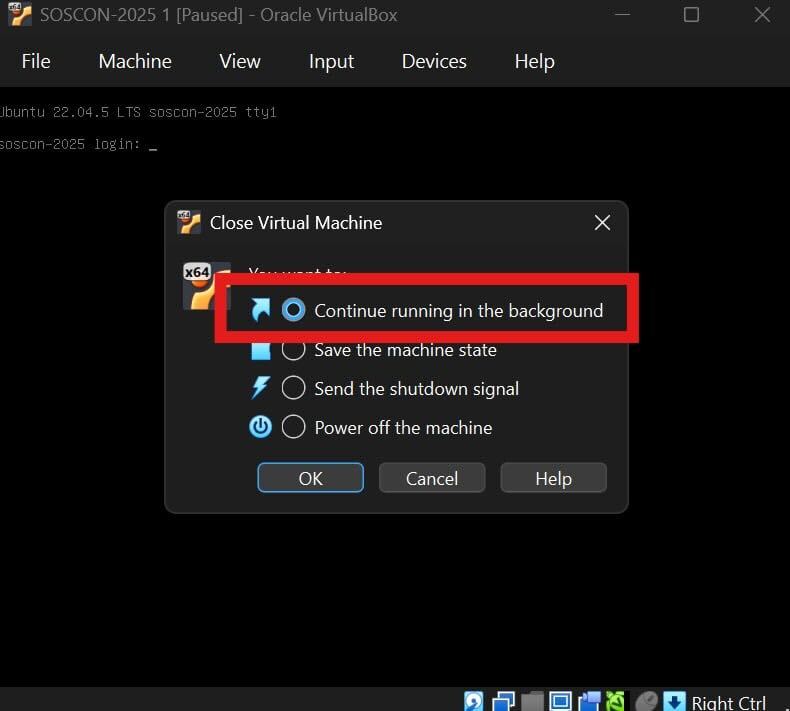

Close the virtual machine. A pop-up window will appear. Select "Continue running in the background".
5
Open any Web Browser (preferably Chrome)
6

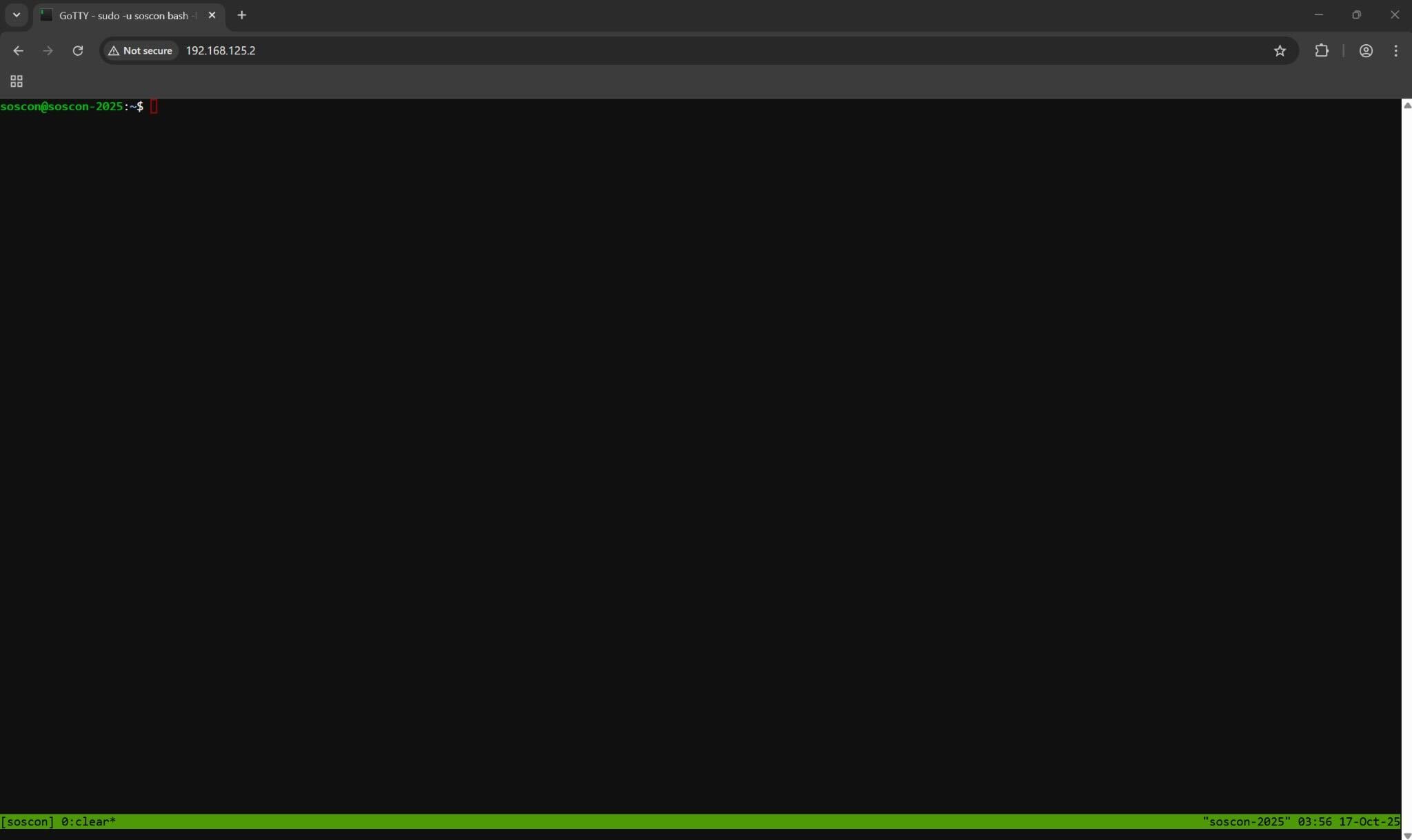

Input and access VM IP Address (http://192.168.125.2)
